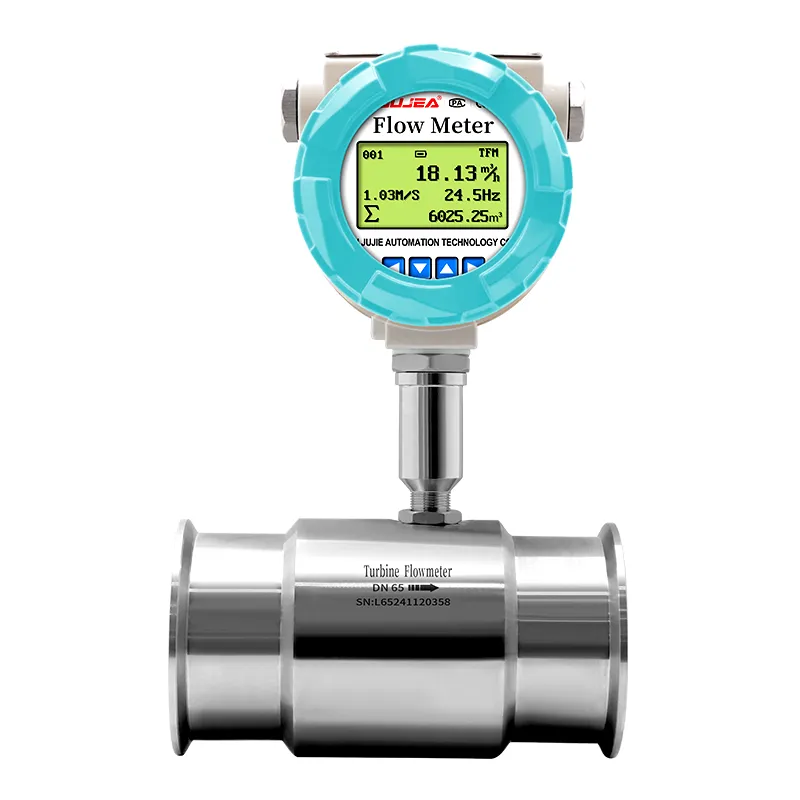

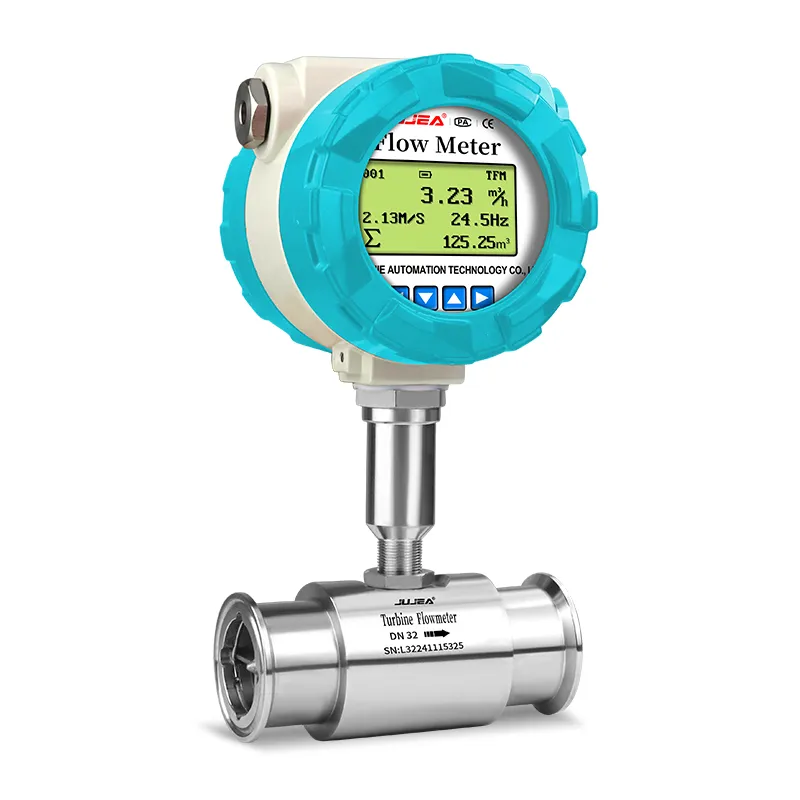

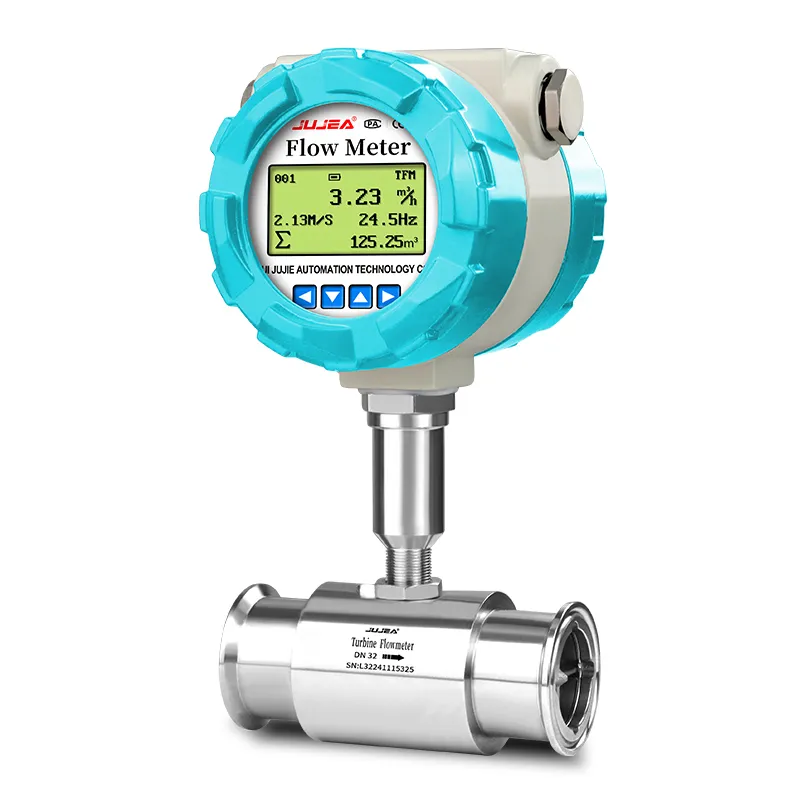

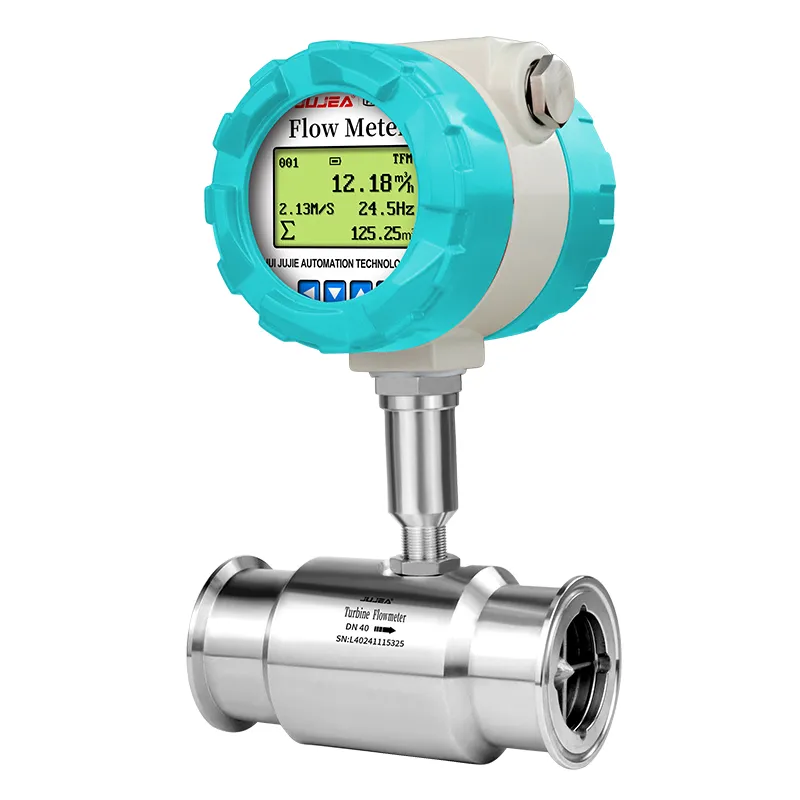

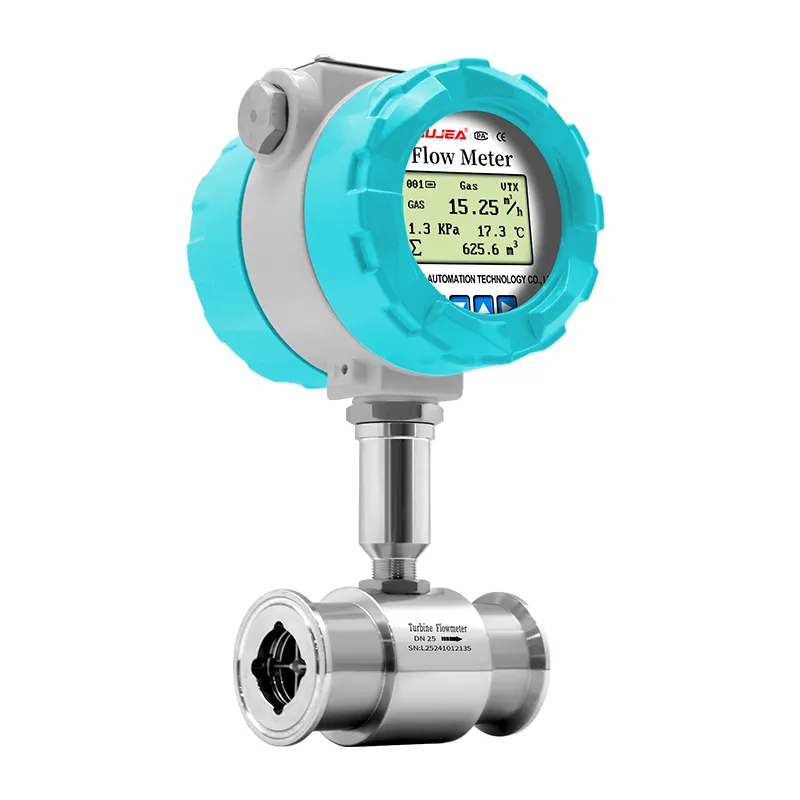

Débitmètre liquide sanitaire

Les débitmètres à turbine sanitaire adoptent des connexions en acier inoxydable 316L et à pince rapide, conformes aux normes d'hygiène alimentaire et pharmaceutique. Pas de coins morts, nettoyage CIP/SIP facile, avec plusieurs sorties de signal pour la mesure des boissons, des produits laitiers et des liquides biopharmaceutiques.

Features of Sanitary Liquid Flow Meter

Full 316L stainless steel wetted parts, mirror polishing without dead angles
Tri-clamp sanitary quick connection, easy disassembly & cleaning
Support CIP/SIP in-place sterilization for food, dairy, pharmacy
±0.5% high accuracy, 10:1 wide turndown measuring range
Multiple outputs: pulse, 4-20mA, RS485 Modbus RTU
High-temperature resistant design, medium temp up to 180℃
IP65 waterproof housing, optional explosion-proof version
Small flow DN4~DN80 complete sanitary caliber selection

Specification of Sanitary Liquid Flow Meter

Measured Medium	Impurity-free, low-viscosity, non-strongly corrosive liquid
Execution Standard	Turbine flow sensor (JB/T9246-2016)
Verification Regulation	Turbine flowmeter (JJG1037-2008)
Instrument Caliber and Connection Method	Clamp connection type: DN4-DN200; Clamp hoop connection type: DN4-DN100
Accuracy Class and Corresponding Repeatability	Accuracy class*1	±1%R	±0.5%R	±0.2%R (customization required)
	Repeatability	≤0.33%	≤0.17%	≤0.07%
Range Ratio	6:1, 10:1, 20:1
Verification Conditions	Verification device	Standard meter method liquid flow verification device; Static mass method liquid flow verification device
	Environmental conditions	Ambient temperature: 20℃; Relative humidity: 65%
Operating Conditions	Medium temperature	Standard: -20℃~80℃; T: -40℃~180℃
	Ambient temperature	-20℃~60℃
	Relative humidity	5%~90%
	Atmospheric pressure	86Kpa~106Kpa
Output Function	Signal output	Pulse signal, 4-20mA signal
	Communication output	RS485 communication, HART protocol
Working Power Supply	External power supply	+24VDC, suitable for 4-20mA output, pulse output, RS485, etc
	Internal power supply	CM0, CM4 (1 set of 3.6V 19Ah lithium battery)
Signal Line Interface	N type	Hirschmann connector DIN43650 or aviation plug CX165P
	Full series	Metal waterproof buckle internal thread M20×1.5
Explosion-proof Grade	ExdIIC T6 Gb
Protection Grade	IP65 or higher (customizable)
