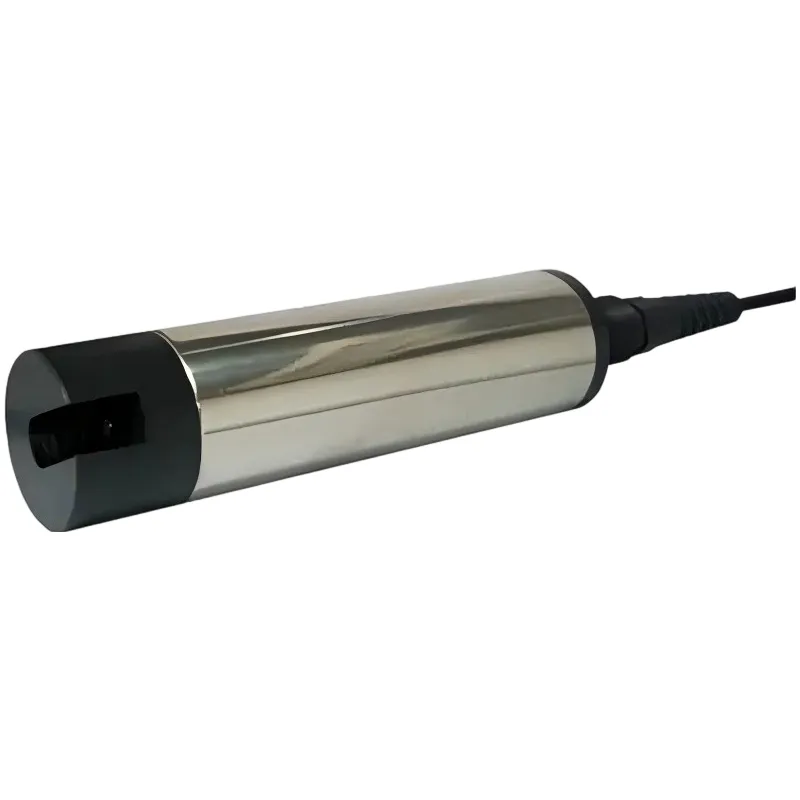

Capteurs TSS/SS

Les capteurs TSS adoptent le principe de diffusion de la lumière infrarouge ISO7027 avec un boîtier en acier inoxydable 316L. La conception submersible IP68 prend en charge la détection de solides suspendus à plusieurs niveaux, le contrôleur W8000SG correspondant pour la surveillance en temps réel des eaux usées en ligne.

Features of TSS/SS Sensors

Comply with ISO7027 standard infrared scattering measurement, unaffected by water chroma
Multiple measuring ranges (0.1~50000mg/L) for low/high concentration sludge
316L stainless steel body, optional titanium coating for seawater corrosive media
IP68 full waterproof, submersible installation, max 0.3MPa pressure resistance
Built-in self-diagnosis & optional automatic cleaning anti-fouling function
Digital RS485 Modbus RTU output, compatible with matched control transmitter
Two calibration modes: standard liquid calibration & on-site water sample calibration
Wide application for municipal sewage, water plants and industrial wastewater monitoring
Stable detection with accuracy ±5%FS, operating temp 0~45℃

Specification of TSS/SS Sensors

Model No.	CS7850D	CS7851D	CS7860D
Power/Outlet	9~36VDC/RS485 MODBUS RTU	9~36VDC/RS485 MODBUS RTU	9~36VDC/RS485 MODBUS RTU
Measurement mode	90°IR scattered light method	90°IR scattered light method	180°IR scattered light method
Dimensions	Diameter 50mm*Length 223mm	Diameter 50mm*Length 223mm	Diameter 50mm*Length 223mm
Housing material	POM+316 Stainless steel	POM+316 Stainless steel	POM+316 Stainless steel
Waterproof rating	IP68	IP68	IP68
Measurement range	0.1-200 mg/L	1-5000mg/L	10-50000mg/L
Measurement accuracy	±5% or 0.5mg/L,whichever is greater	±5% or 0.5mg/L,whichever is greater	±5% or 0.5mg/L,whichever is greater
Pressure resistance	≤0.3Mpa	≤0.3Mpa	≤0.3Mpa
Measuring temperature	0-45℃	0-45℃	0-45℃
Calibration	Standard liquid calibration, water sample calibration	Standard liquid calibration, water sample calibration	Standard liquid calibration, water sample calibration
Cable length	10m or customize	10m or customize	10m or customize
Thread	G3/4	G3/4	G3/4
Weight	1.5kg	1.5kg	1.5kg
Application	General applications, rivers, lakes, environmental protection, etc.	General applications, rivers, lakes, environmental protection, etc.	General applications, rivers, lakes, environmental protection, etc.
