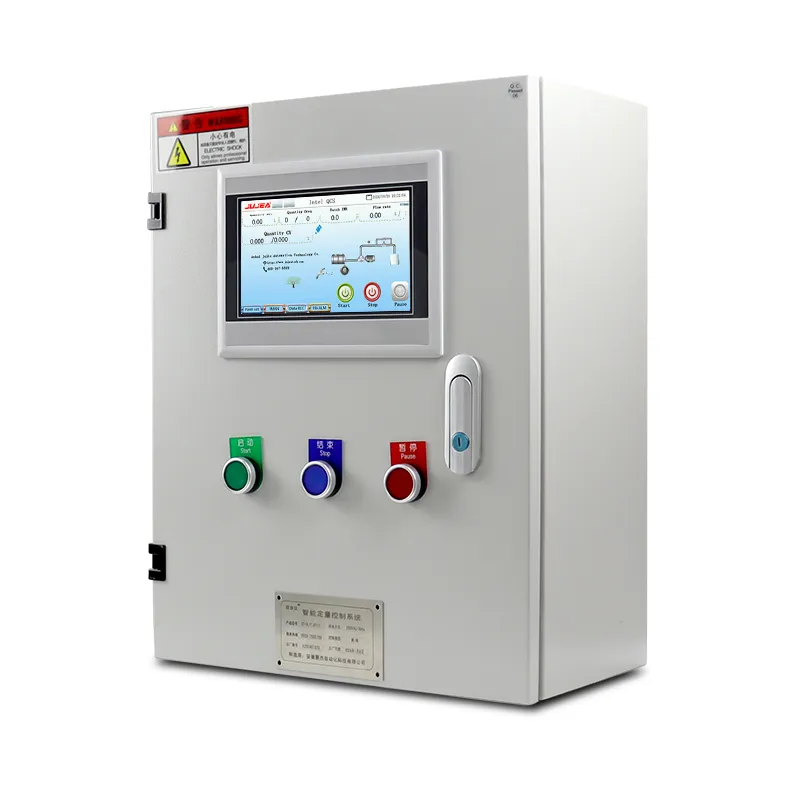

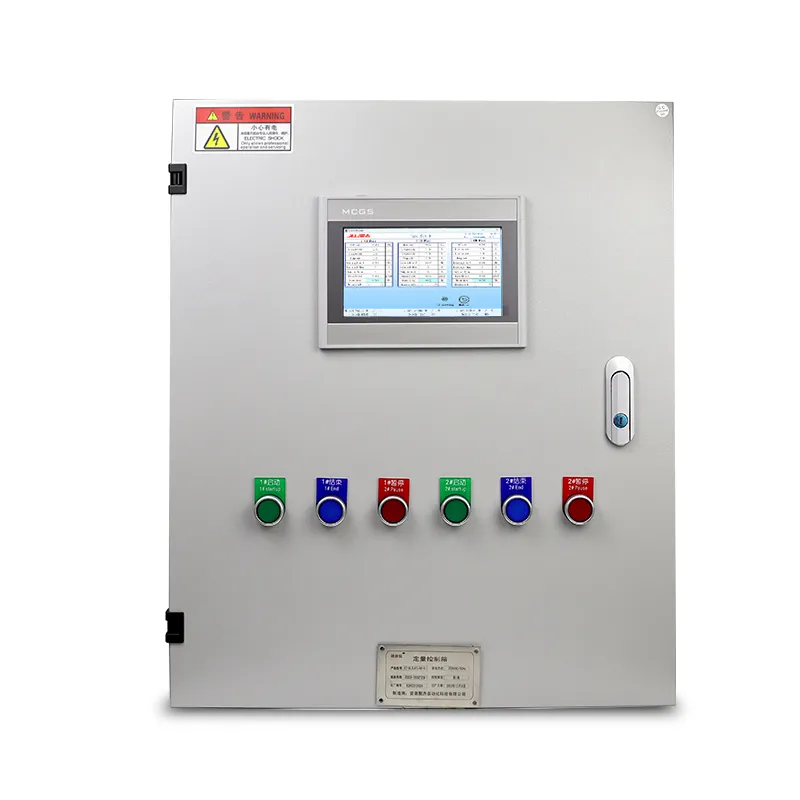

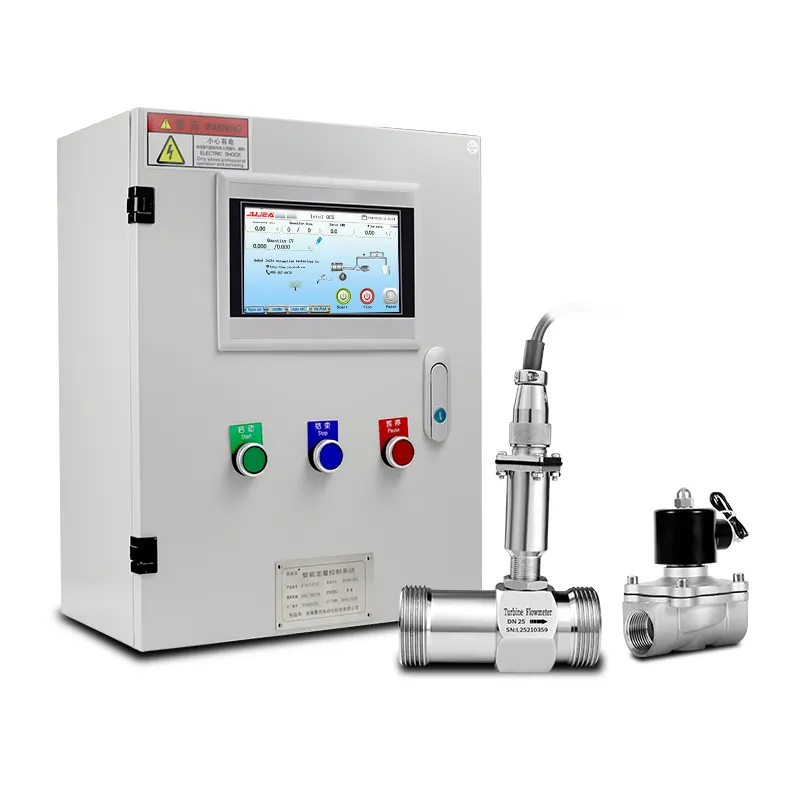

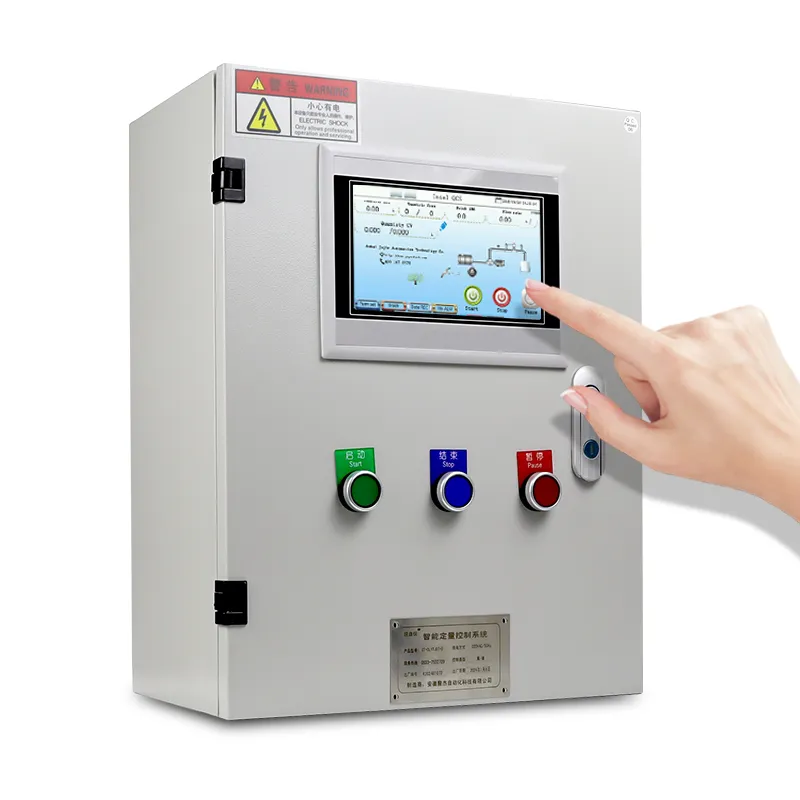

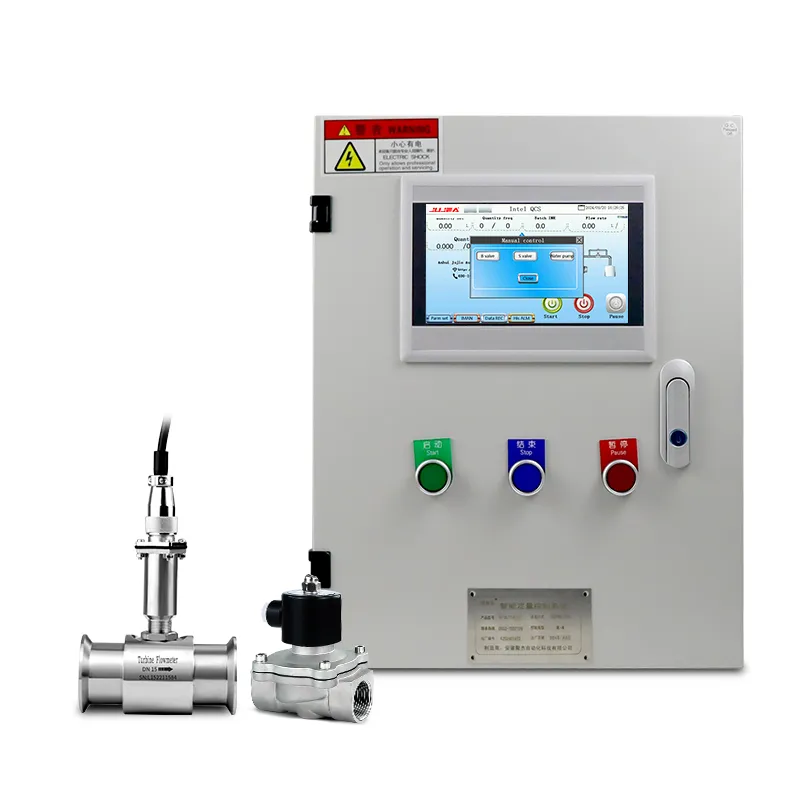

Système de contrôleur de remplissage par lots PLC

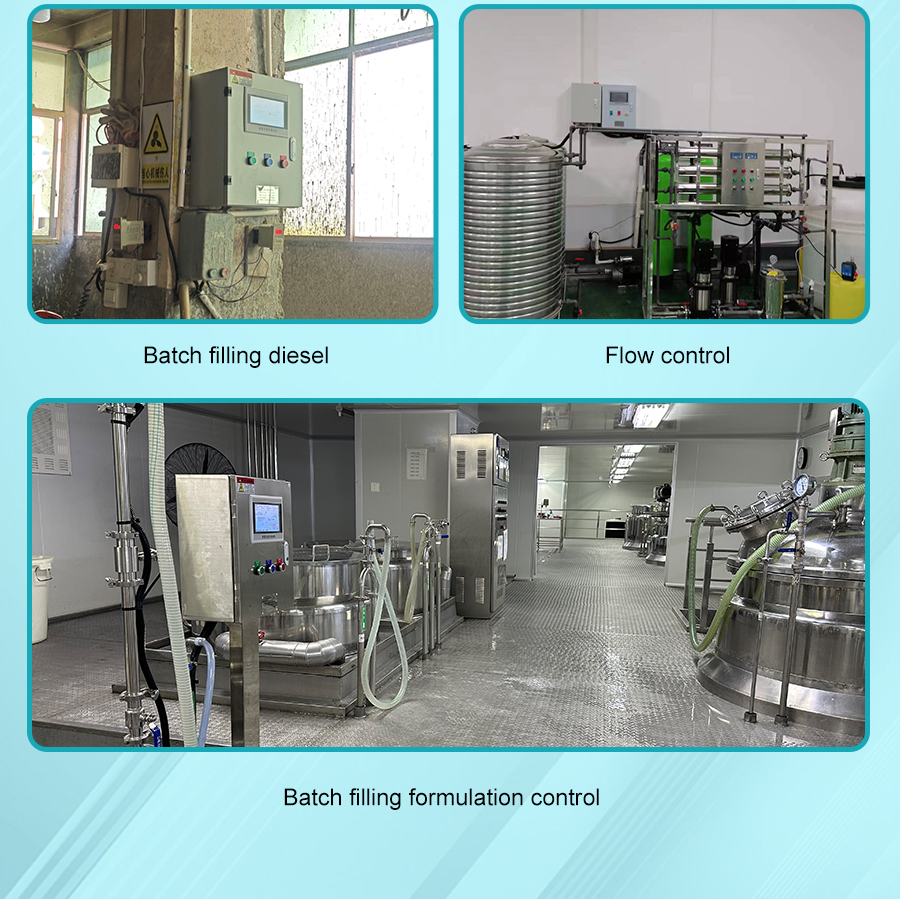

Cette armoire de commande par lots intégrée PLC HMI dispose d'un écran tactile de 7 pouces, prenant en charge un contrôle anti-dépassement double grande/petite valve. Compatible avec les débitmètres à impulsion/courant, il stocke les enregistrements par lots et adopte Modbus RTU pour un dosage chimique et précis des aliments.

Features of PLC Batch Filling Controller System

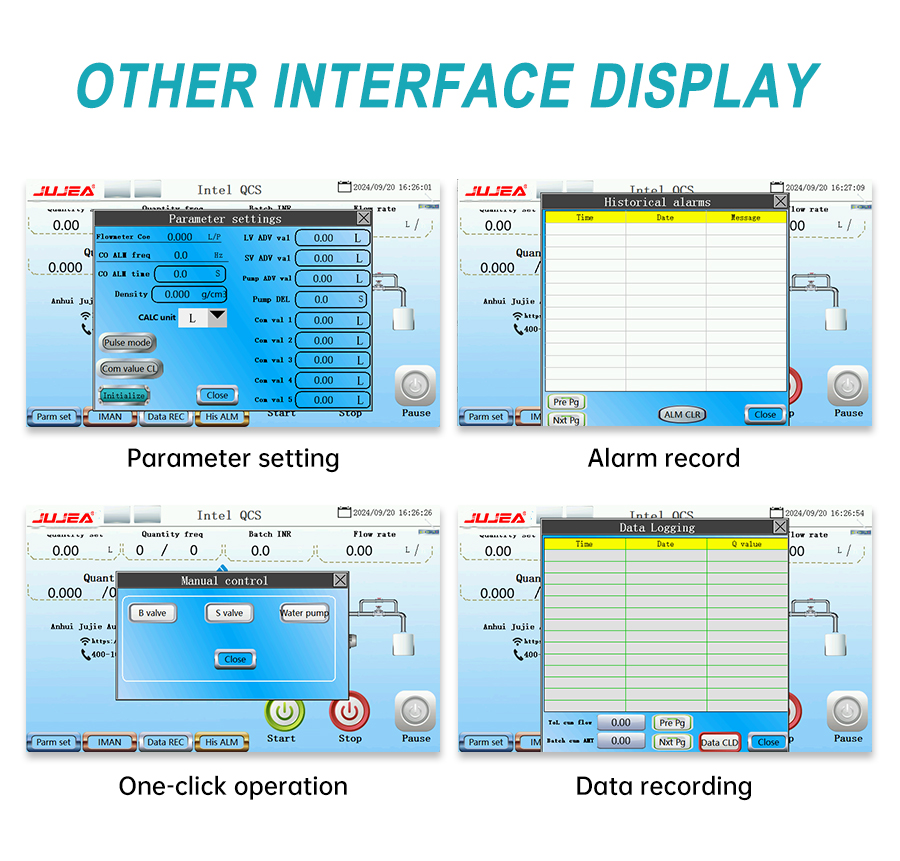

PLC + 7-inch industrial touch HMI, intuitive flow graphic display

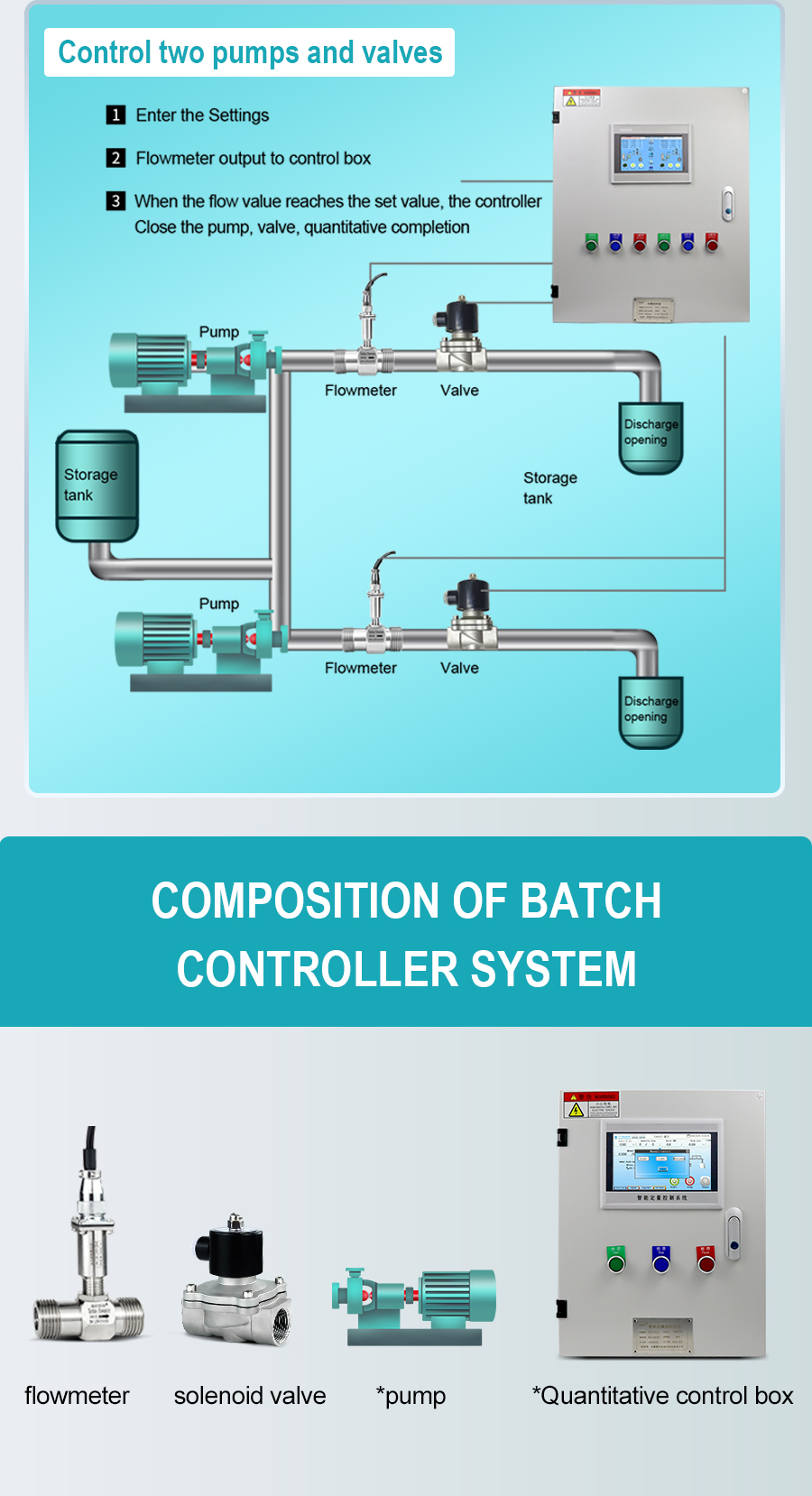

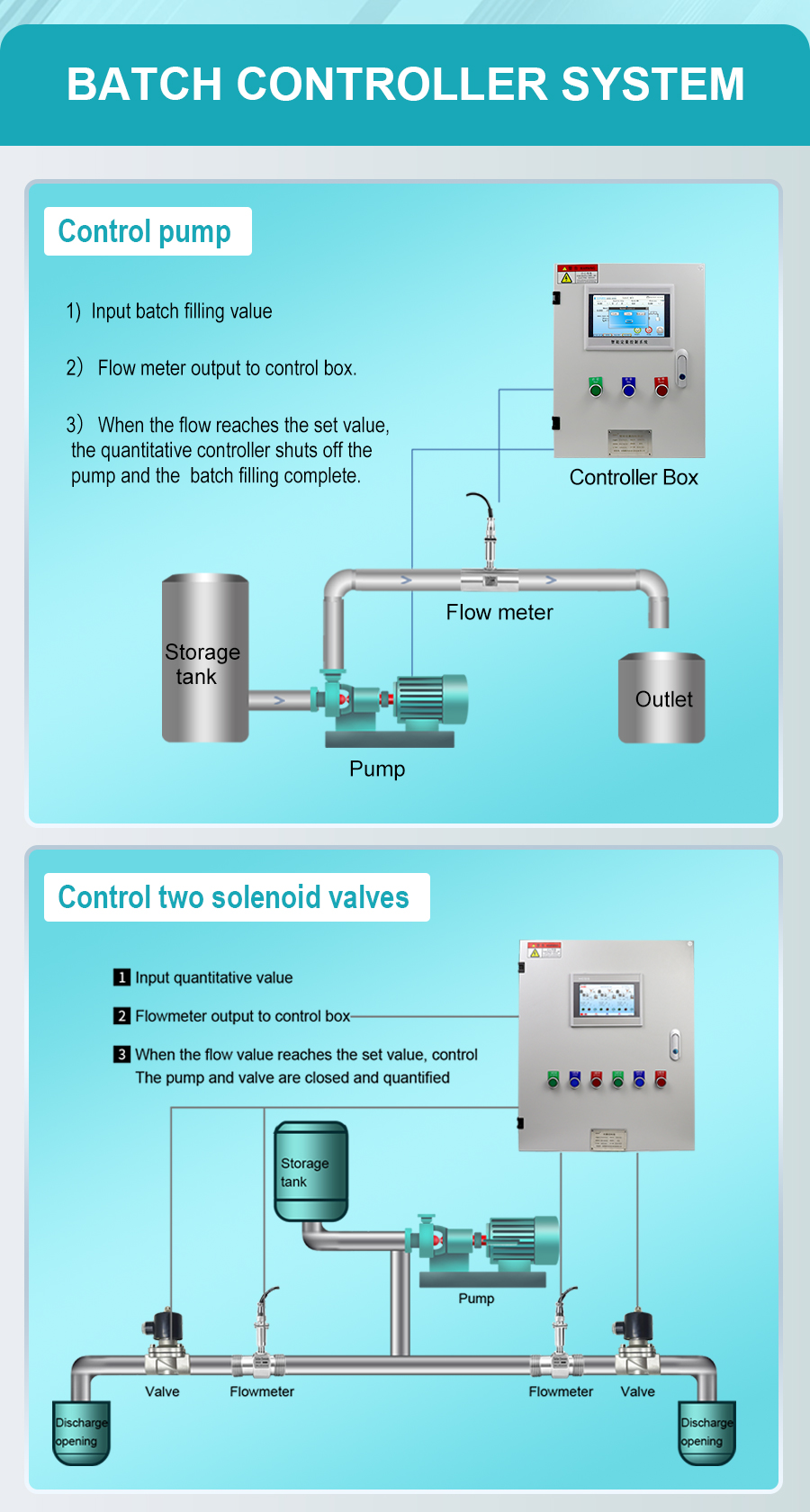

Dual large & small valve advance control to eliminate filling overshoot

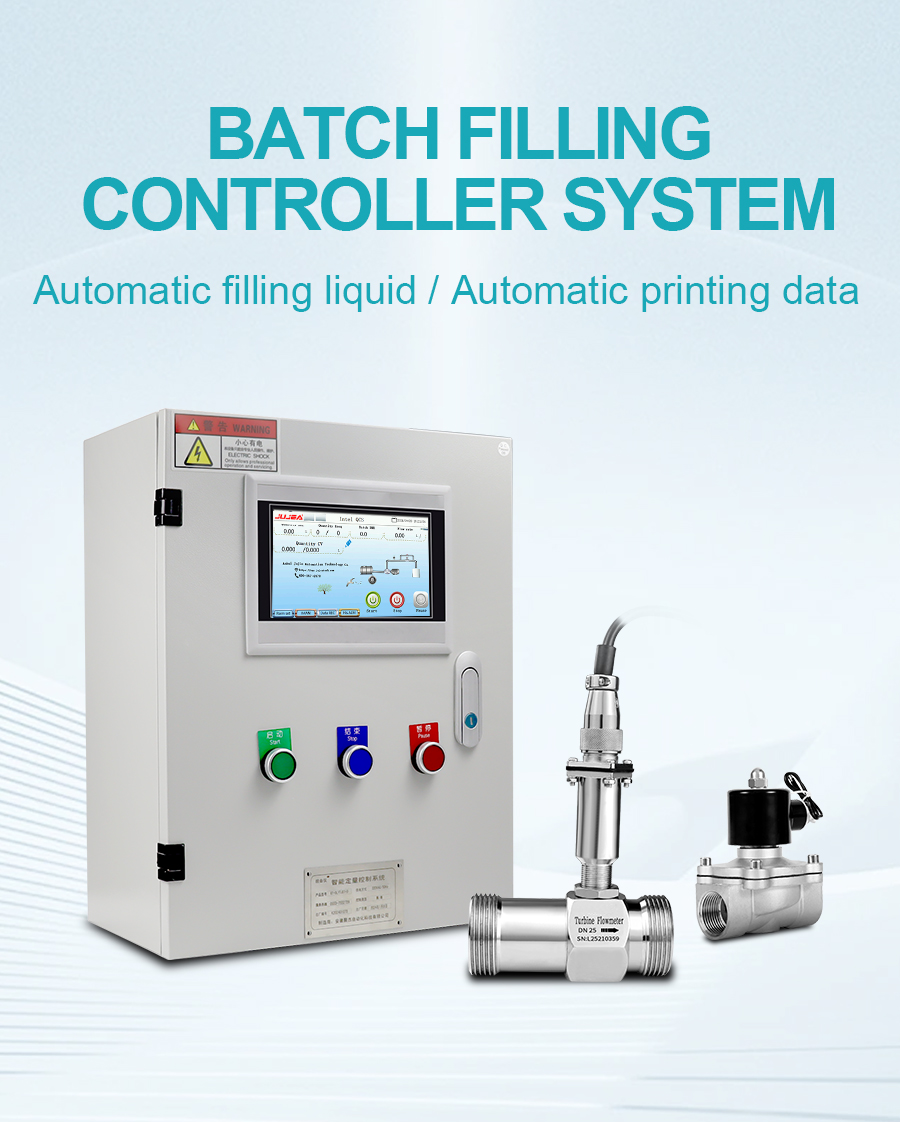

Supports pulse or current signal flowmeter access
L/m³/Kg/t multi-unit switching for volume & mass metering
Permanent storage of batch data & fault logs after power off
Modbus RTU RS485 communication for upper computer linkage
Multiple safety alarms: flow loss, pump overload, liquid level
Independent manual mode for valve and pump debugging

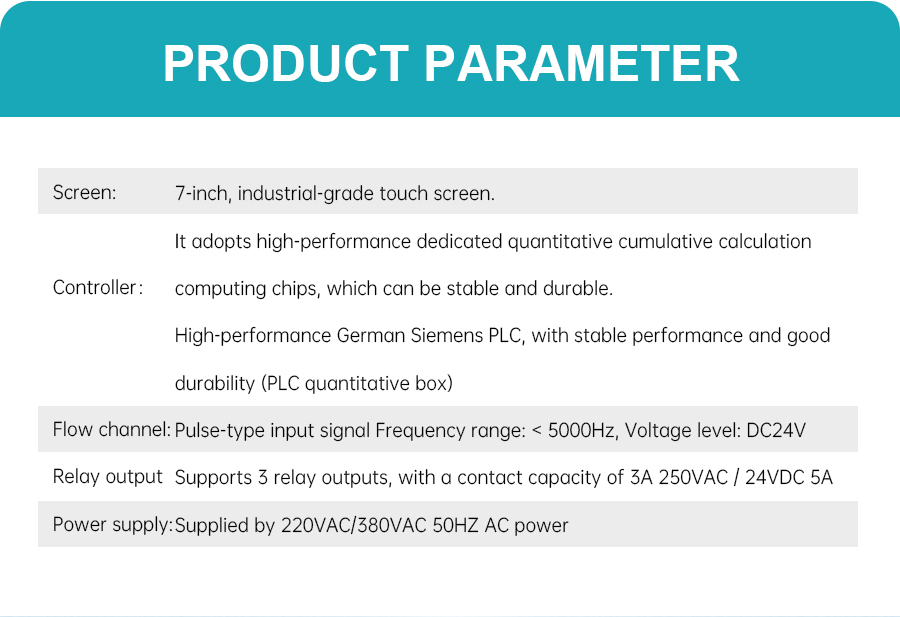

Specification of PLC Batch Filling Controller System

Screen	7/10/15-inch industrial-grade touchscreens
Controller	High-performance German Siemens PLC
Flow Channel Input	Pulse-type input signal; frequency range: 1-30kHz; voltage rating: DC24V
Relay Output	Supports 3-channel relay output, contact capacity 3A 250VAC/5A 24VDC
Power Supply	220VAC/50HZ AC power supply
Communication Interface	Provides an RS485 communication interface; supports Modbus RTU protocol (for connection to a host computer or other data reading devices).
Product Dimensions	400500200mm
